High Hardness 55-65HRC, Alloy Cladding Wear-Resistant Steel Plate

High Hardness 55-65HRC, Alloy Cladding Wear-Resistant Steel Plate

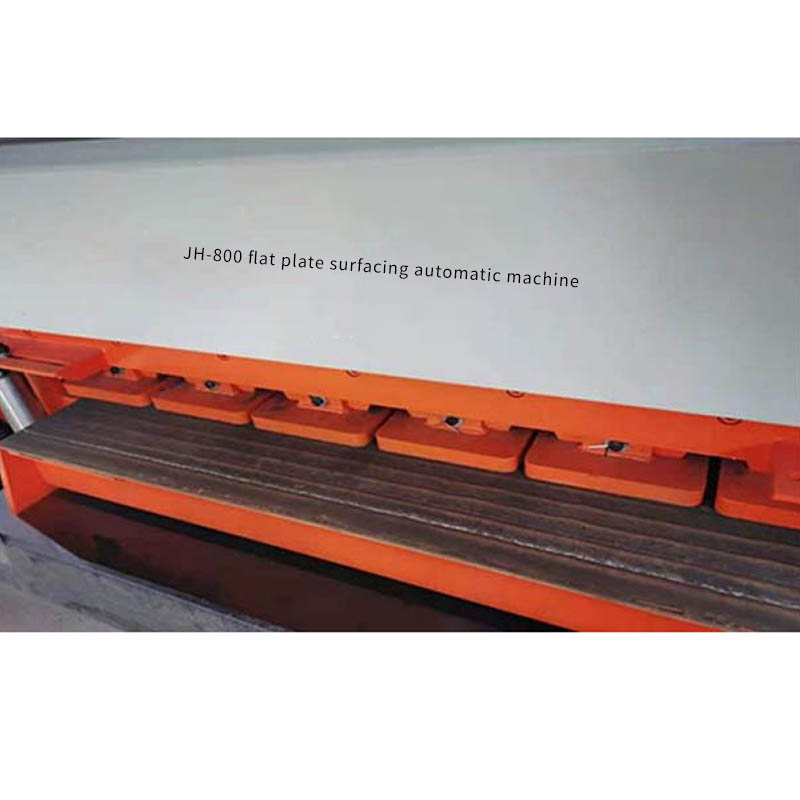

Saiwei composite wear-resistant steel plate: Utilizing a fully digitally controlled automated welding system and a flat hydraulic device, the plate utilizes a multi-gun arc welding method. This advanced welding process utilizes both wire feeding and the addition of alloy powder. The welded wear-resistant plate achieves a smooth profile with uniform weld widths. Finished products range from a minimum thickness of (4+3) mm to a maximum thickness of (12+12) mm, with an annual production capacity of up to 10,000 square meters. The surface hardness of the wear-resistant steel plate is HRC 55-65. Its wear resistance is 15 times that of ordinary carbon steel plate, meeting medium and above impact strength requirements, and it offers excellent machinability and bending radius. Custom-made special-shaped pieces can also be produced according to customer specifications and drawings.

Consult

Features
Technical Indicators
Overall Dimension

Common specifications: 3+3, 5+5, 6+4, 6+6, 8+6, 8+8, 10+6, 10+8, 10+10, 12+12, etc. (Custom sizes available upon request). Plate width: 1.5m*3m, 1.5m*6m, 1.5m*4.5m. The metallographic structure of Saiwei composite wear-resistant steel plate is composed of martensite + retained austenite + white Cr7C3. Generally, to achieve good wear resistance, the Cr/C ratio should be appropriately adjusted to maintain between 5.5 and 6 to achieve the desired Cr7C3 content. This is because the wear resistance of the plate is closely related to the Cr7C3 content. The hardness of 3 is 1450 HV. The higher the content, the better the wear resistance. Of course, changes in toughness and brittleness must also be considered. Therefore, high-quality composite wear-resistant steel plates cannot be judged solely based on Rockwell hardness values; a microscopic analysis is also required, focusing on whether the wear-resistant metallographic structure is martensite or carbide. Product Features of Saiwei Composite Wear-Resistant Steel Plate: 1. High wear resistance 2. Good impact resistance 3. Good heat resistance 4. Strong applicability 5. Easy processability 6. High cost-effectiveness. Applications of Composite Wear-Resistant Steel Plate: 1. Power Industry: Fan blades, chute spouts and hopper linings, crusher components, coal mill components, ash discharge pipes, air handling systems, and conveyors, etc. 2. Steel Industry: Hopper linings, grates, feeders and bases, dump trucks, hoppers, feed pipes, crusher components, slag spouts, various chassis, pre-screens, etc. 3. Cement Industry: Feed system spouts and piping, mill liners, crusher components, slag spouts, vibrating screens, etc. 4. Paper Industry: Cyclone liners, screw conveyors, feed chutes and hoppers, fan blades, transfer ducts, transition elbows, etc. 5. Mining Industry: Truck trough liners, hopper liners, feed trough liners, crusher components, covers, wear rods and wear plates, etc. 6. Coal Handling Industry: Feed troughs, hoppers, crusher parts and liners, coal pipes, elbows, pump bodies, etc. 7. Glass Industry: Raw material silos, baffles, adapters, end bushings, feeders, hoppers, silos, guard plates, liners, wear rings, etc. 8. Brickmaking Industry: Brickmaking molds, etc. 9. Other Equipment: Various powder separator ducts, guide vanes, spreader trays, fan impellers, housings, screw conveyor blades, chutes, silos, etc.
